Empowering Surface Enhancing Life
Specializing in Plasma Spraying of Titanium (Ti) , Titanium alloy and Hydroxyapatite (HA) coatings on metal and PEEK substrates for hips, spines, trauma and dental implants.
We pursue high standards and excellent quality.
We provide faster lead times with reliable delivery.
Efficient production enables more competitive pricing.
Specialized Medical Surface Engineering Partner

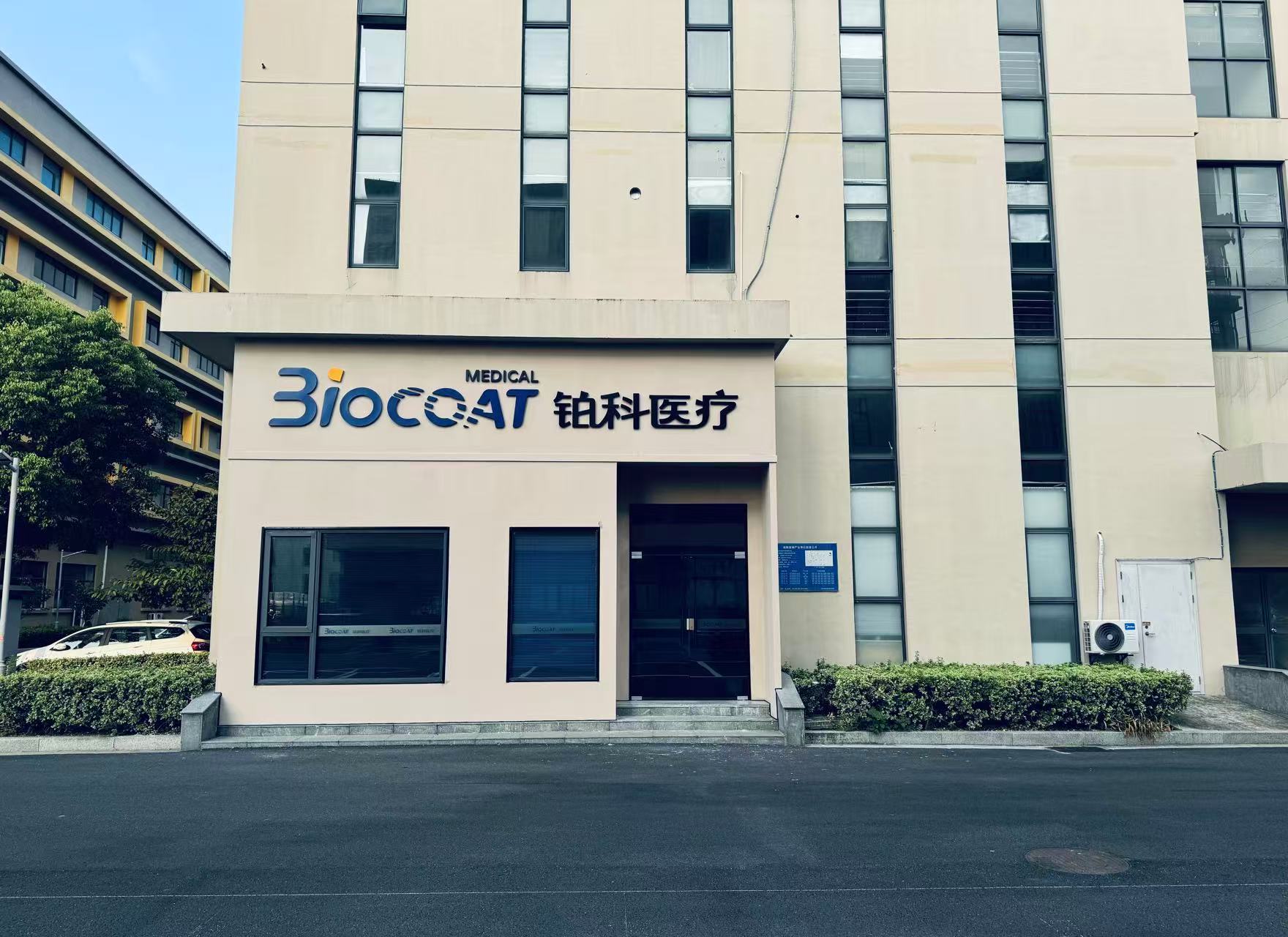

Biocoat is a technology company located in Changzhou, China, specializing in surface treatment for orthopedic implants. We own both VPS and APS equipments, all of which are independently developed and manufactured in-house. Our team is composed of professionals with backgrounds from globally recognized companies. In addition, we also provide one-stop services for implant joints, from raw blanks to finished spray-coated products and manufacture related plasma spraying equipment for medical device manufacturers and distributors with specific needs.
Medical Exclusive
Zero industrial cross-contamination. Every facility, tooling setup, and process is strictly calibrated for surgical implants.

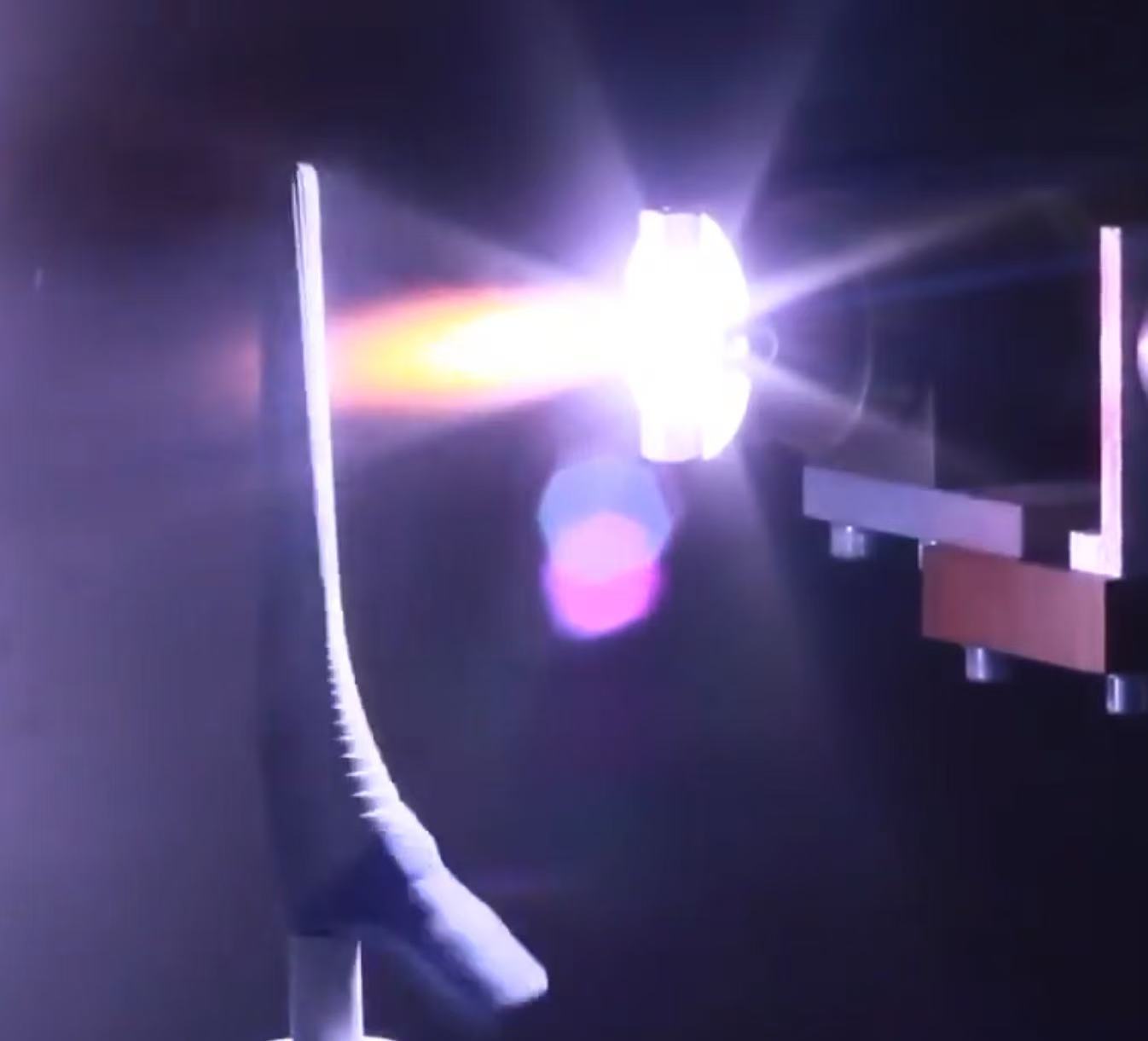

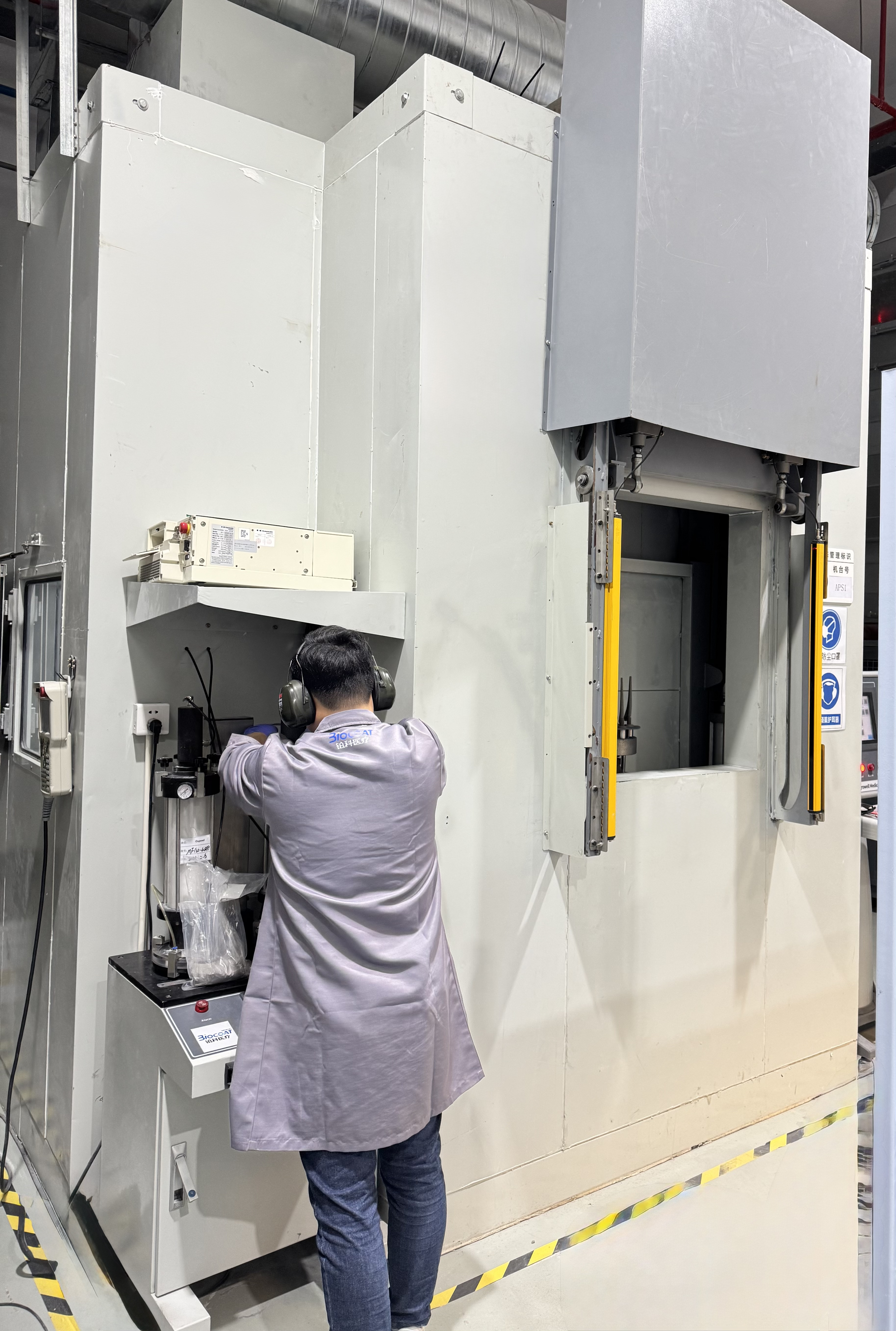

Plasma Spraying System
Our fully self-developed plasma spraying systems provide high coating efficiency and consistent yield, fully meeting customer quality and delivery requirements.
ISO 13485 Certified
Rigorous medical quality management system with lifetime batch tracking, master qualification records, and process validation.
In-House Testing →
Equipped with metallographic preparation, digital optical microscope analysis, mechanical testing, and roughness profilometers.
Specialized Coating Solutions
Engineered to optimize early bone osseointegration, long-term secondary mechanical fixation, and cyclic shear endurance under physiological loading.

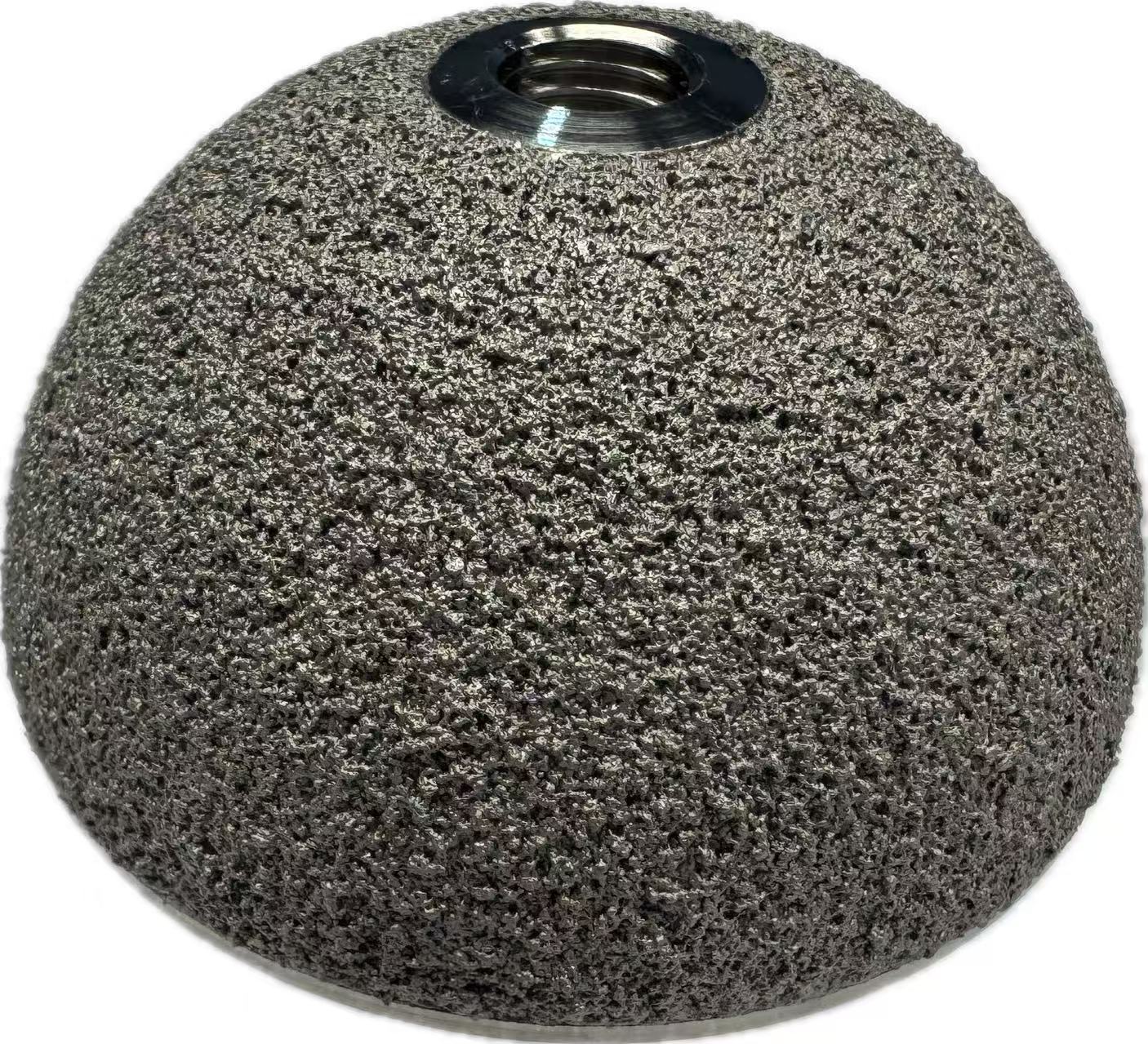

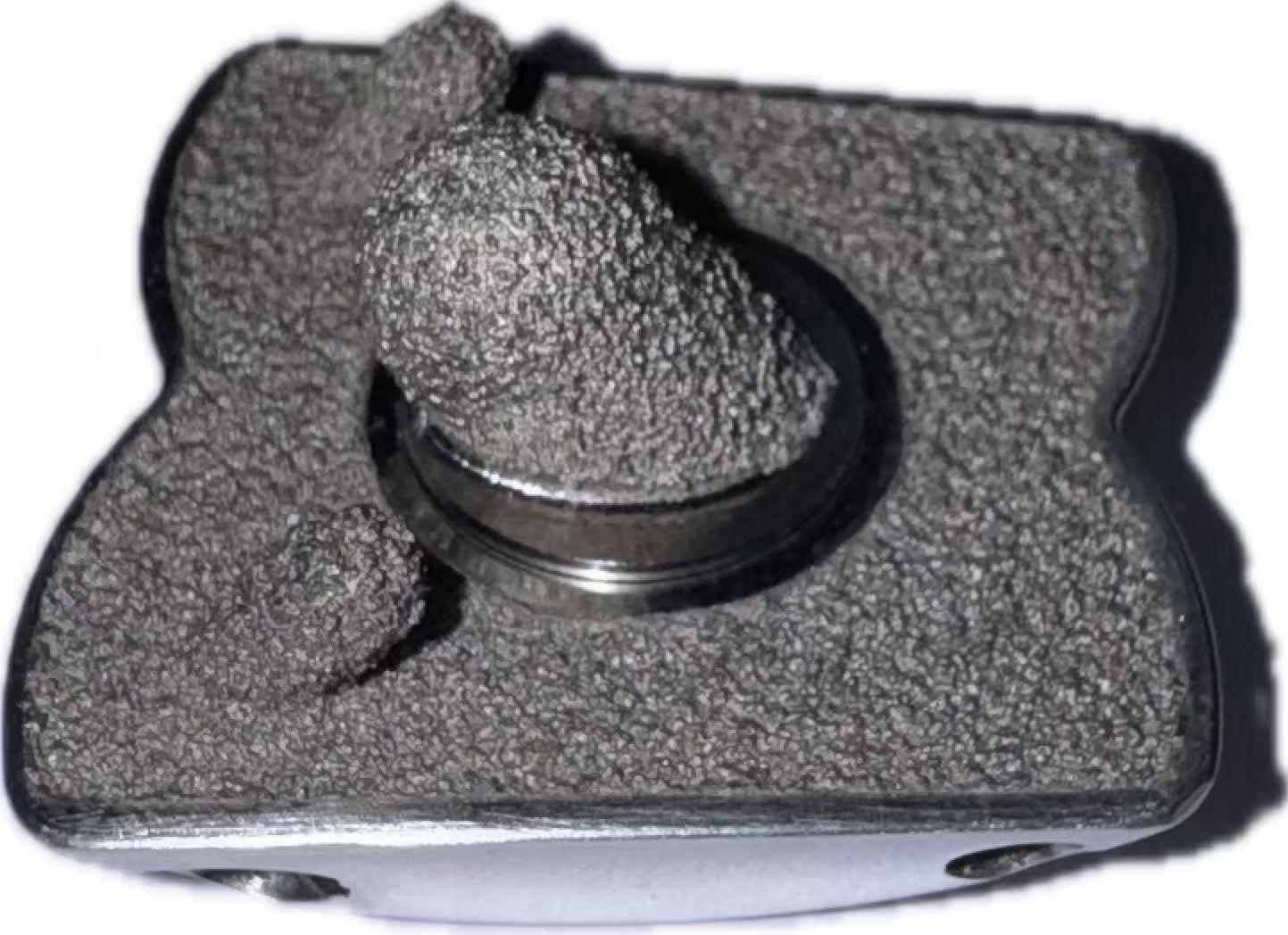

Porous Titanium (Ti) Coating

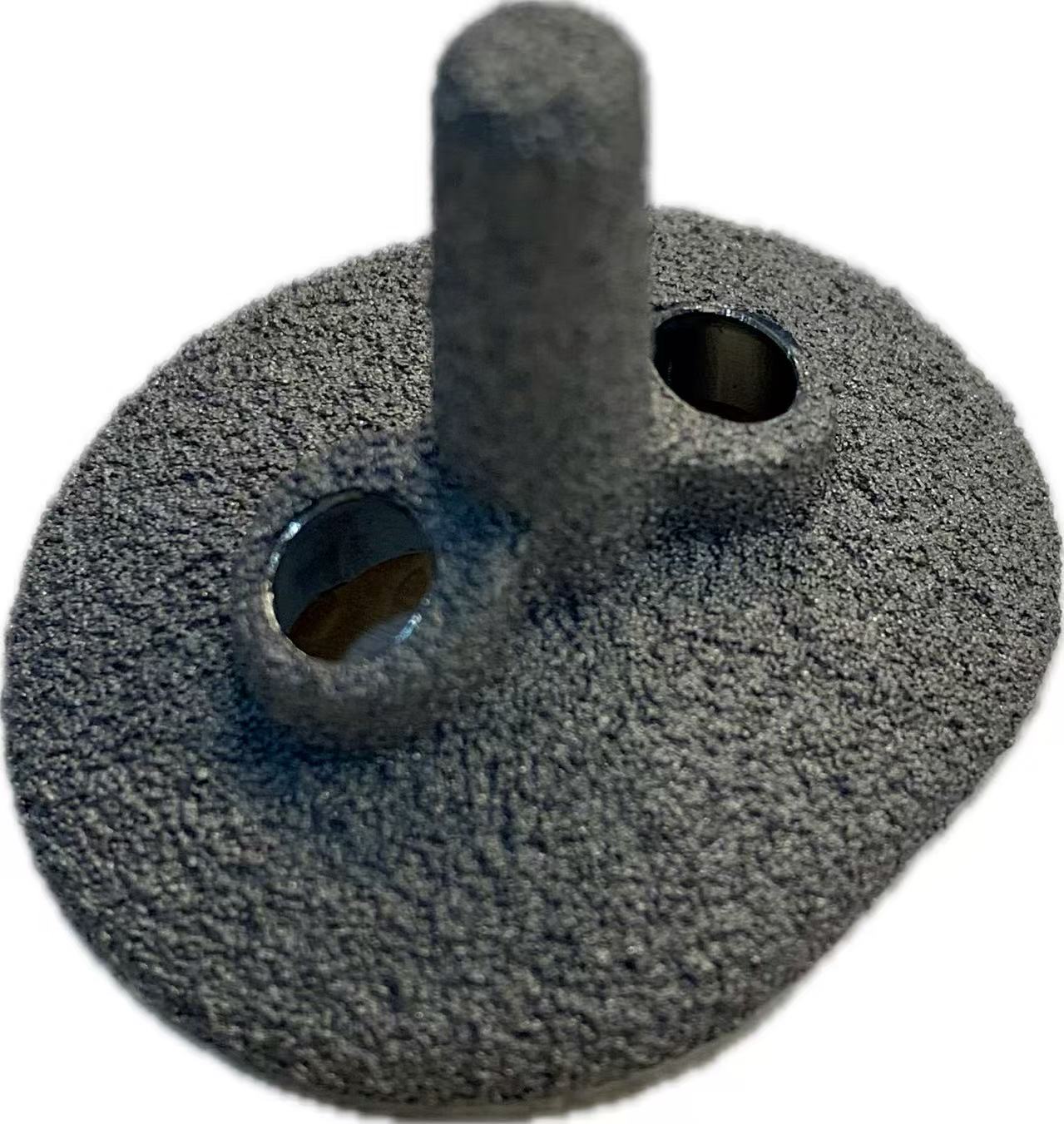

Atmospheric and vacuum plasma-sprayed commercially pure Titanium (CP-Ti). Forms an open, interconnected 3D porous network replicating human cancellous bone.
Hydroxyapatite (HA) Coating
Synthetic high-purity calcium phosphate ceramic chemically bonded to substrates. Stimulates biological osteoconduction for rapid post-operative bone attachment.
Ti + HA Dual Gradient Coating
Synergistic structure combining a porous titanium anchor sublayer with a thin bioactive HA topcoat, delivering immediate bioactivity plus permanent fatigue anchorage.

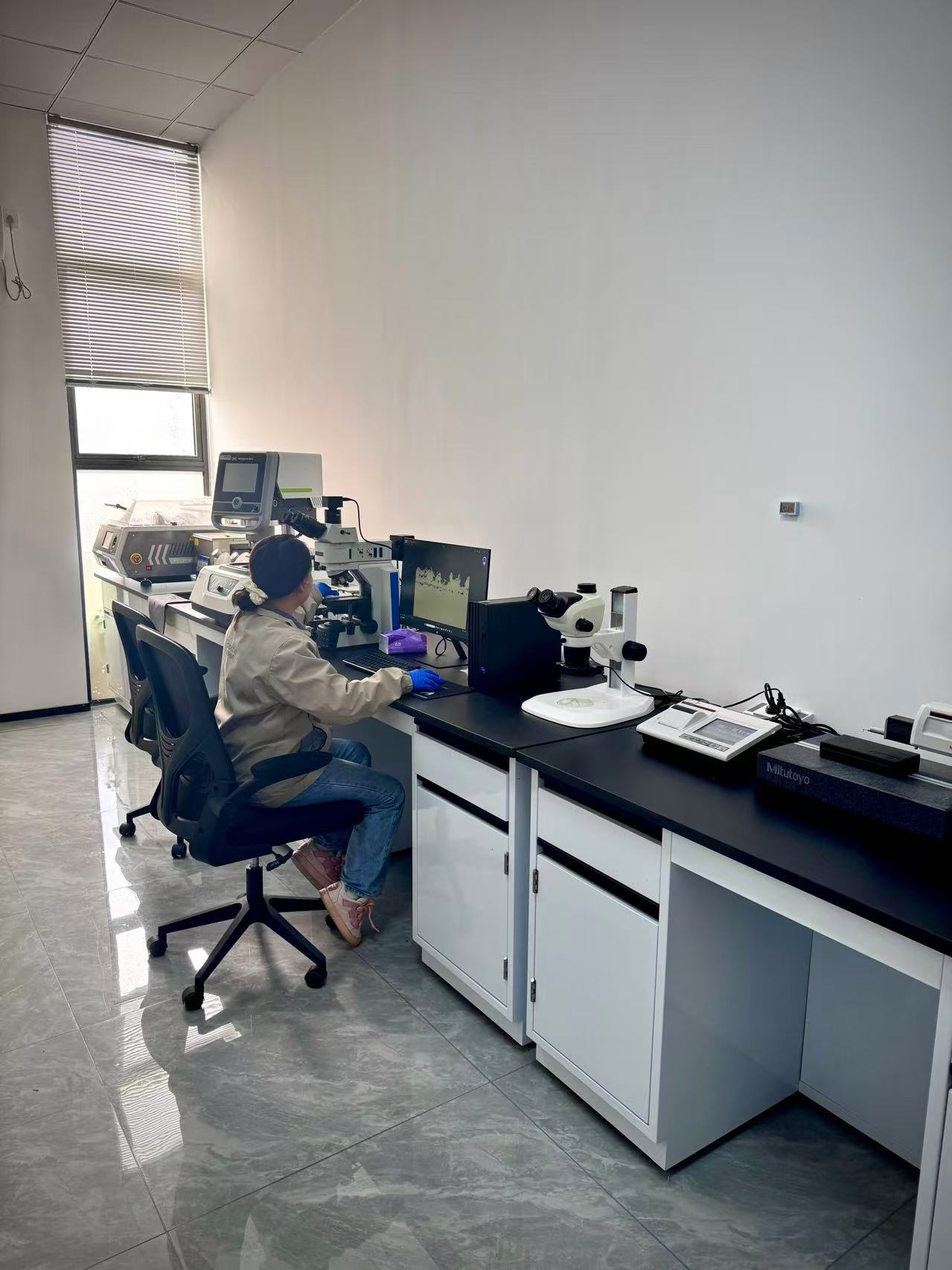

Laboratory & Testing Capabilities
Biocoat operates an advanced testing laboratory dedicated to medical device surface verification, process validation, and batch quality control. Equipped for rigorous static mechanics, metallographic stereology, and surface roughness evaluation in full compliance with Chinese (YY/T, GB/T) and international (ASTM, ISO) standards.

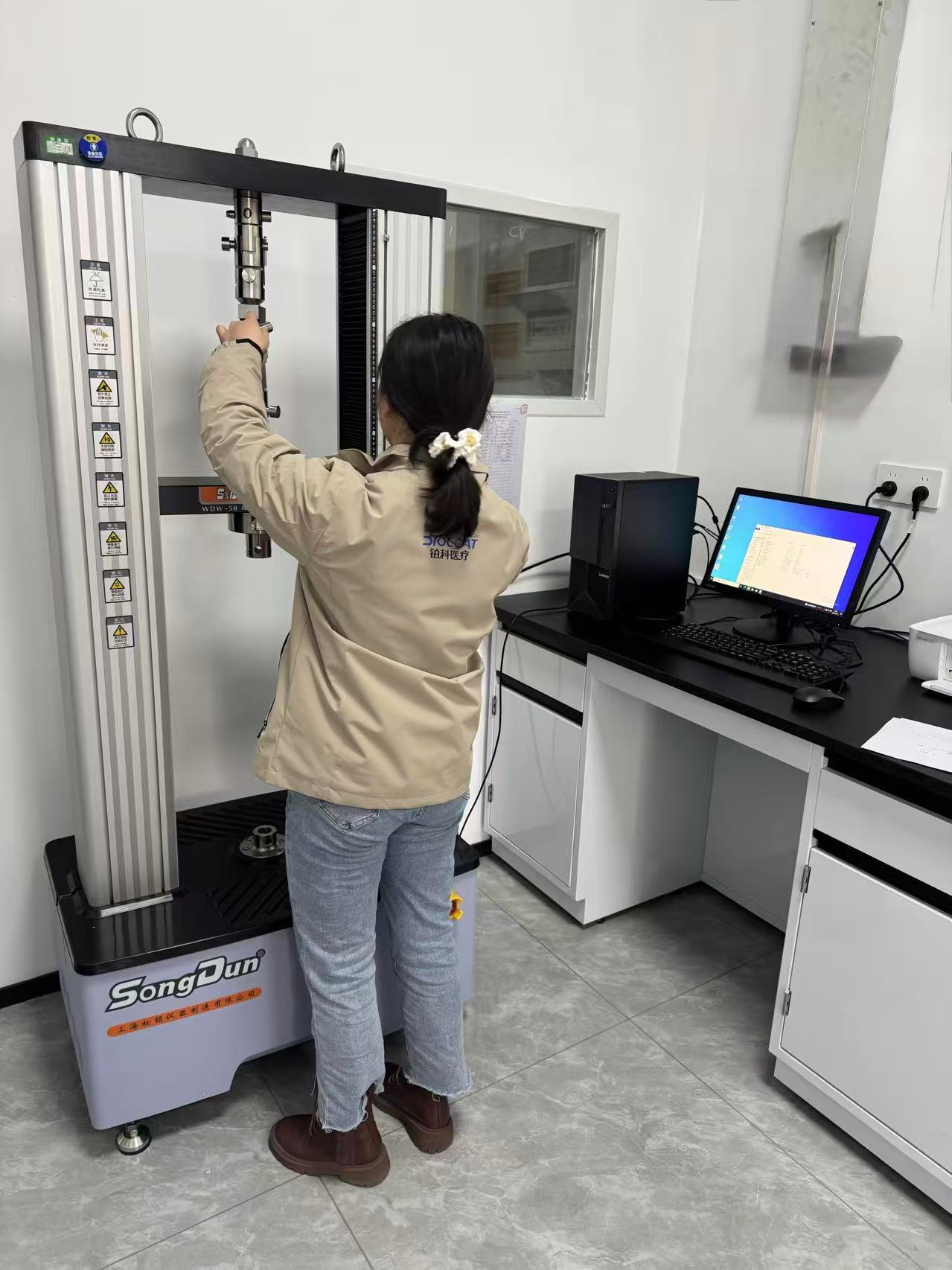

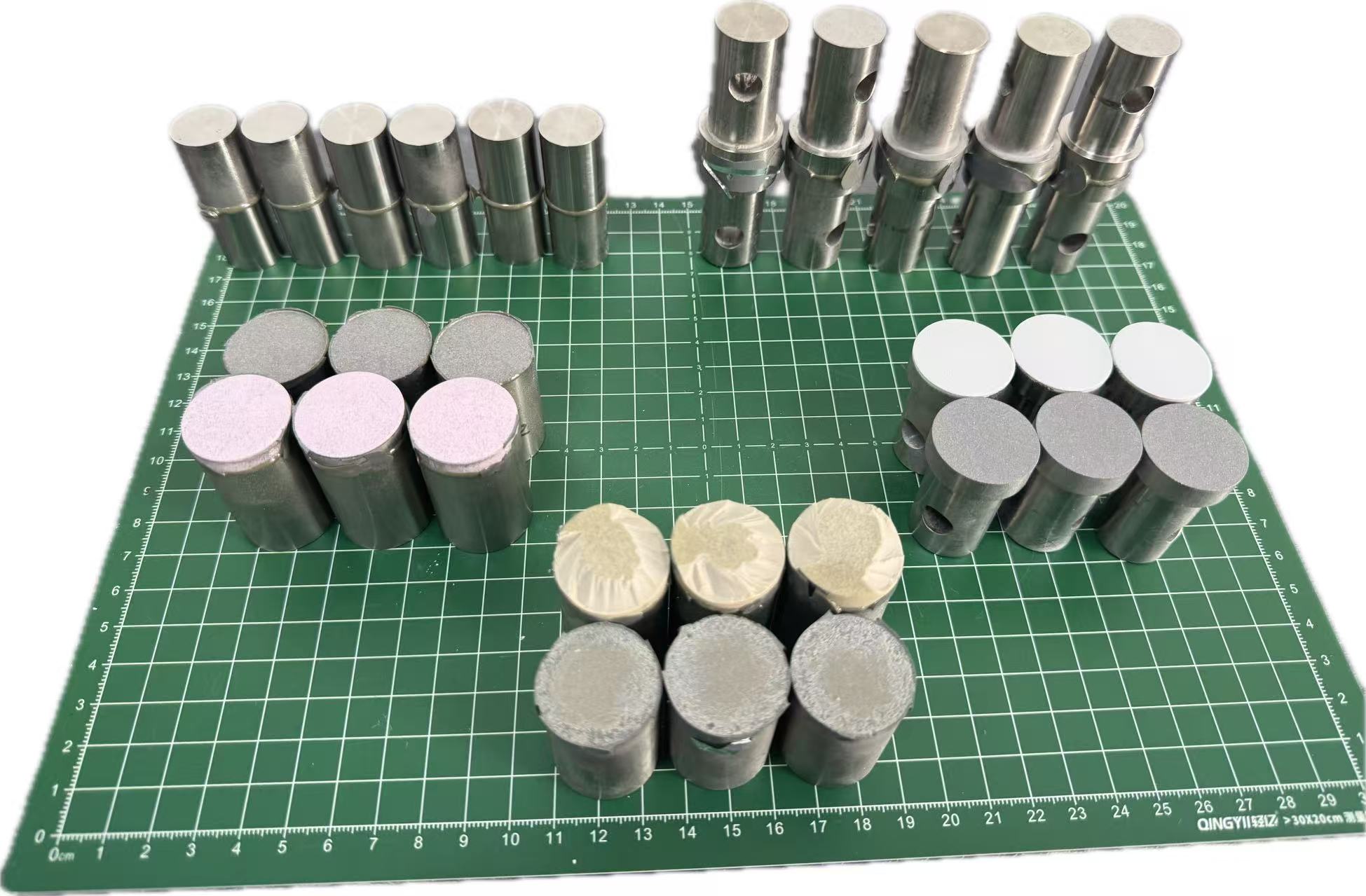

Tensile & Shear Adhesion Testing
Comprehensive mechanical evaluation determining static tensile bond strength and interfacial shear resistance for calcium phosphate (HA) and porous metallic coatings.
Evaluates adhesion strength between coating and substrate under perpendicular tensile load.
Determines interfacial shear strength and failure mechanics under pure parallel shearing forces.

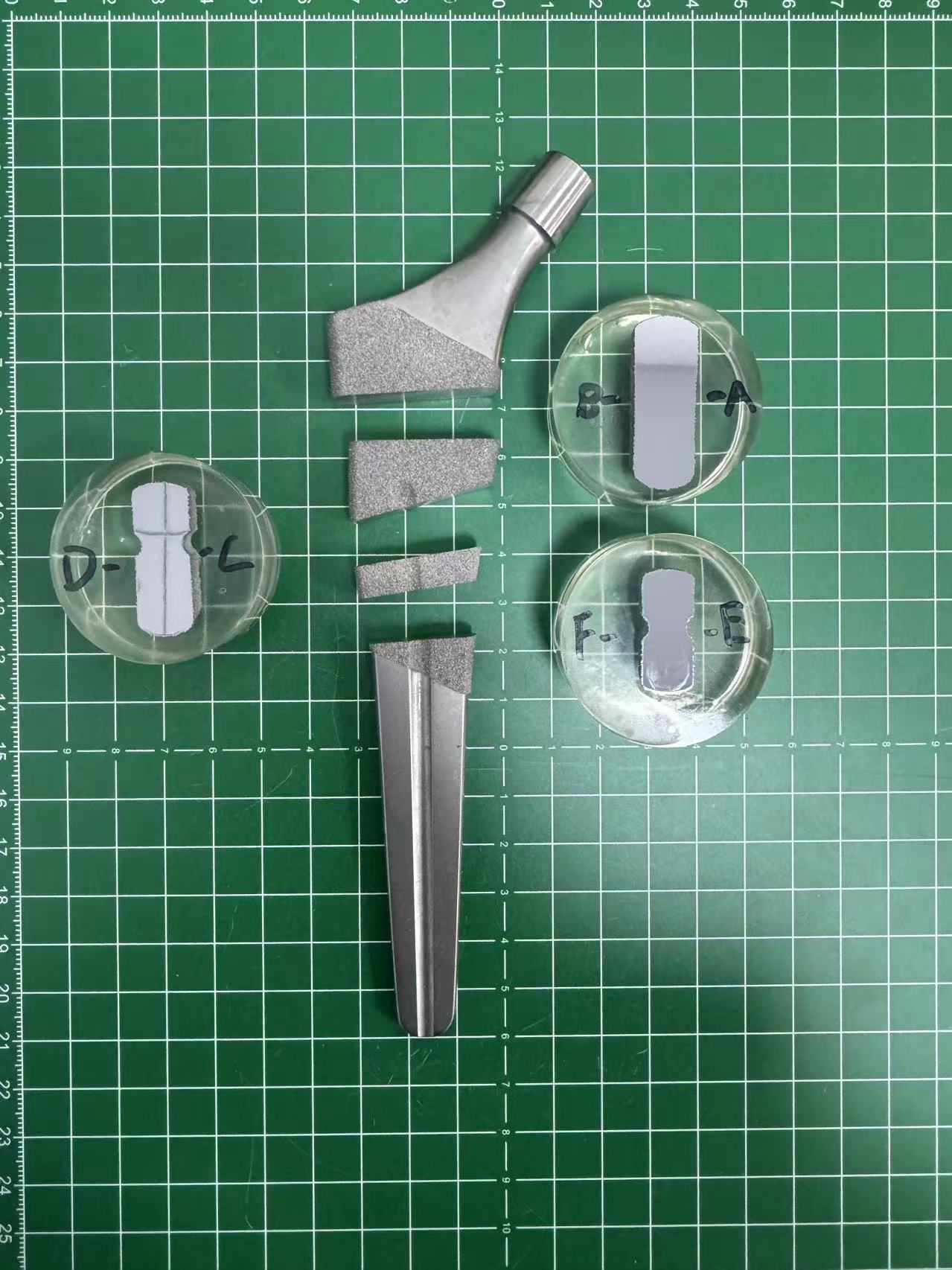

Stereological Characterization & Prep

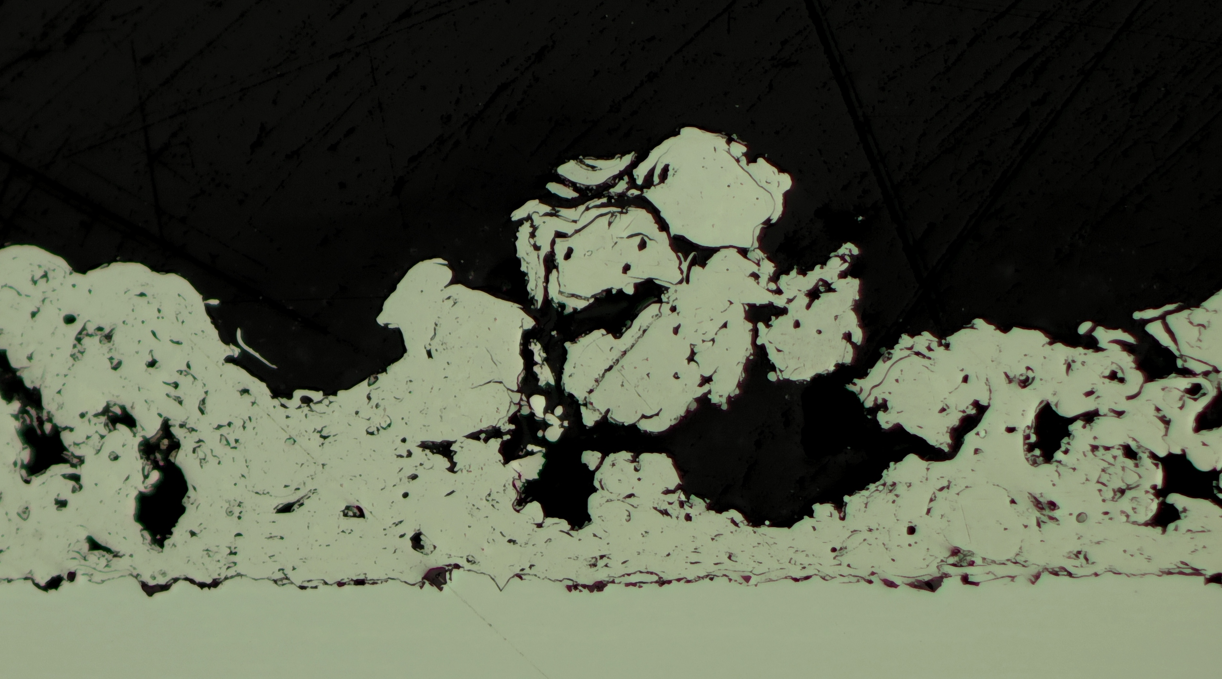

End-to-end metallographic preparation and quantitative stereological evaluation assessing porous coating morphology, void fraction, and trabecular depth.
- Mean Thickness (平均厚度): 100 μm – 600 μm
- Porosity Level (孔隙率): 30% – 50% void fraction
- Pore Intercept (孔隙截距): Interconnected pathways
Equipped with low-speed diamond cut-off, vacuum cold mounting resins, automated grinding/polishing stations to prevent edge deformation.

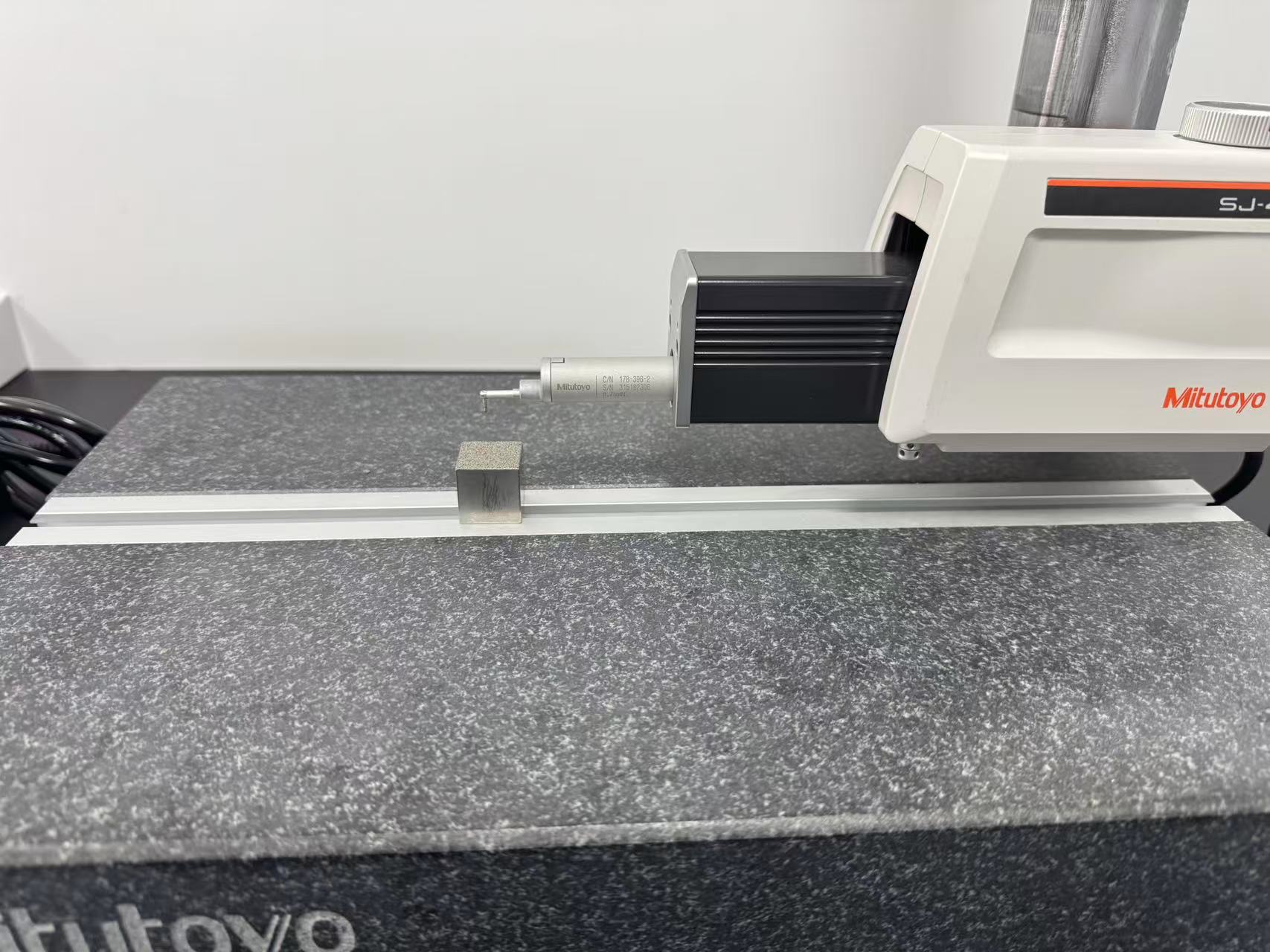

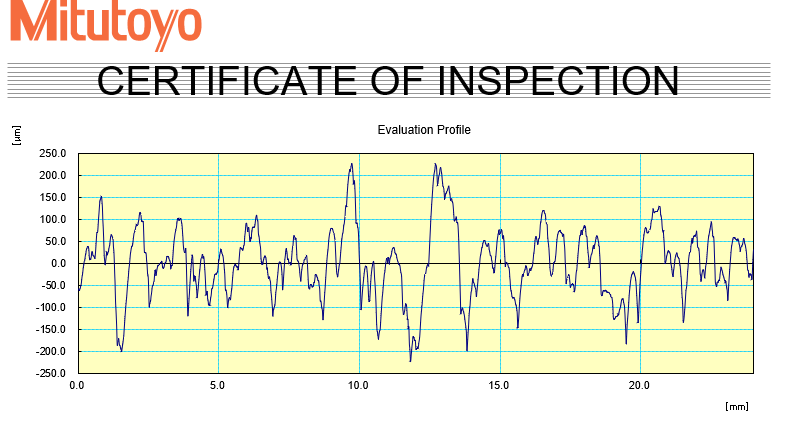

Surface Roughness Profilometry
High-resolution contact stylus profilometry analyzing micro- and macro-surface textures on grit-blasted substrate pre-treatments and as-sprayed medical coatings.
Rules and procedures for assessing profile texture parameters including Ra, Rz, and Rt with precision diamond-tip stylus.
Verification of surface roughness post-alumina grit blasting ensures reproducible interfacial mechanical locking before VPS/APS plasma deposition.
In-House Testing Standards & Matrix
Direct comparison of Chinese national/industry standards and international regulatory equivalents.
| Testing Category / 类别 | Testing Item / 检测项目 | Chinese Standard / 国内标准 | International Standard / 国际标准 | Key Metrics / 核心检测指标 |
|---|---|---|---|---|
| Static Mechanics | Tensile Adhesion Strength (拉伸试验) | YY/T 0988.11 | ASTM F1147 | Static bond strength (MPa), rupture location & failure mode |
| Static Mechanics | Static Shear Strength (剪切试验) | YY/T 0988.12 | ASTM F1044-05 | Interfacial shear resistance (MPa) of Ti and calcium phosphate coatings |
| Stereology | Stereological Evaluation (多孔体视学评价) | YY/T 0988.14 | ASTM F1854-15 | Mean coating thickness (μm), volume porosity (%), linear pore intercept (μm) |
| Surface Metrology | Surface Roughness Testing (表面粗糙度) | GB/T 10610-2009 | ISO 4288 | Ra, Rz, Rt profile parameters, evaluation cutoff lengths, stylus filtering |
| Sample Preparation | Metallographic Sectioning & Polishing (金相制样) | In-House SOP | ASTM E3 / ISO 1463 | Cold vacuum resin mounting, non-destructive low-speed diamond cut, automated polishing |
Serving Global Medical Implant Sectors
Our qualified coating lines serve tier-1 and OEM orthopedic device manufacturers across key surgical disciplines.

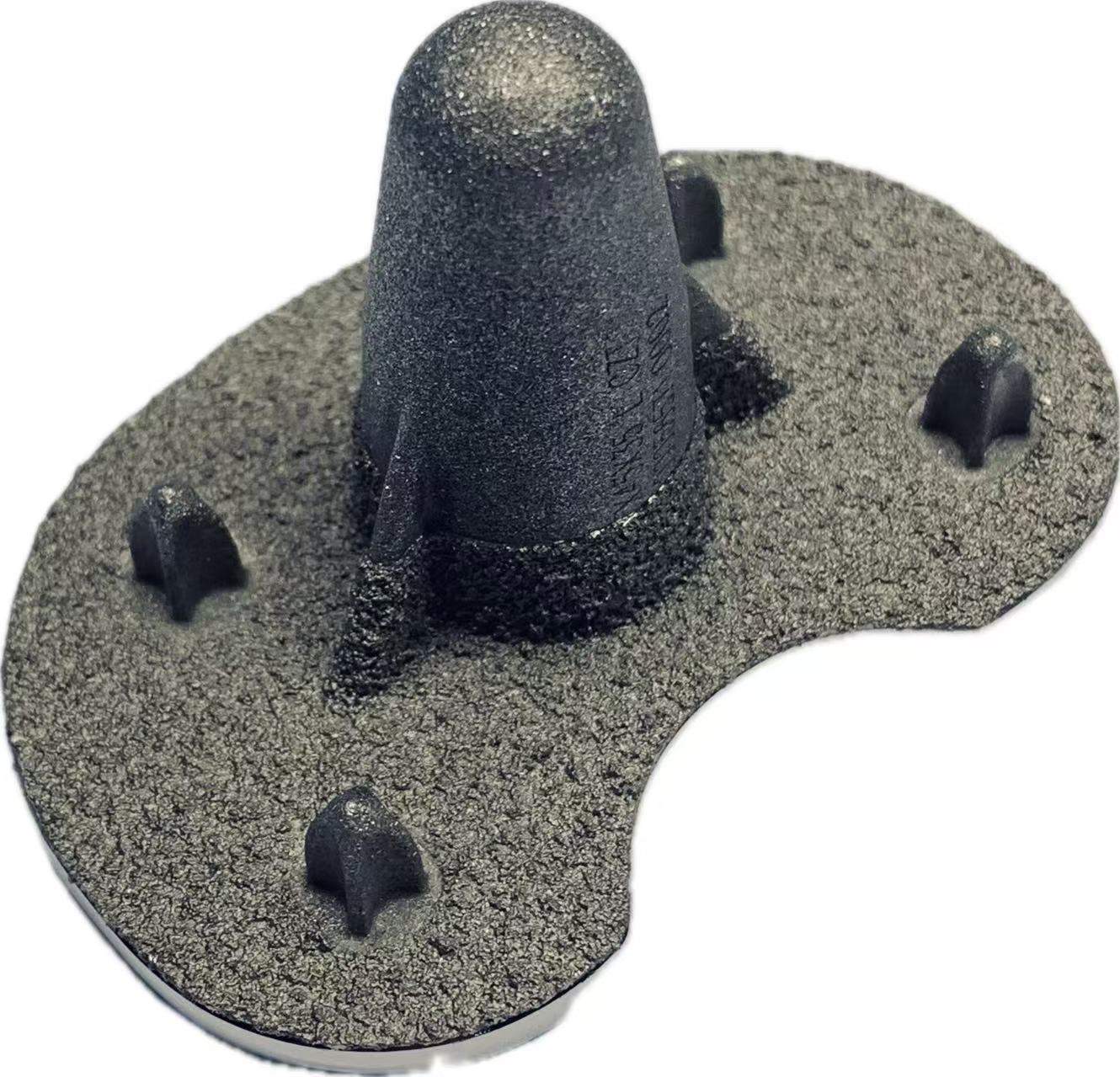

Hip & Knee Reconstruction

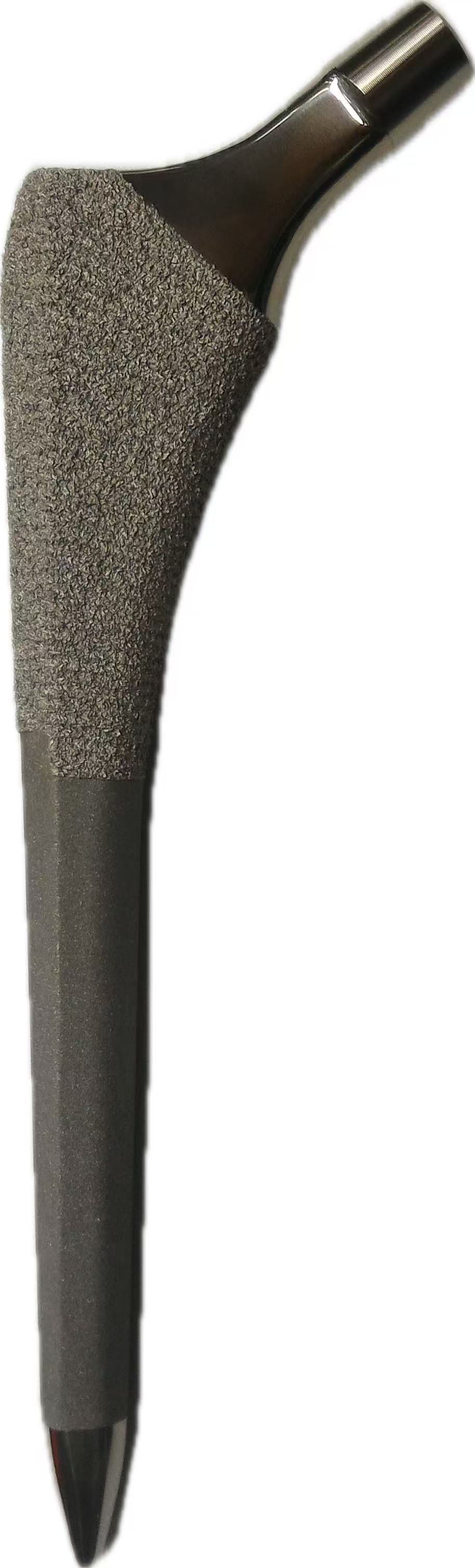

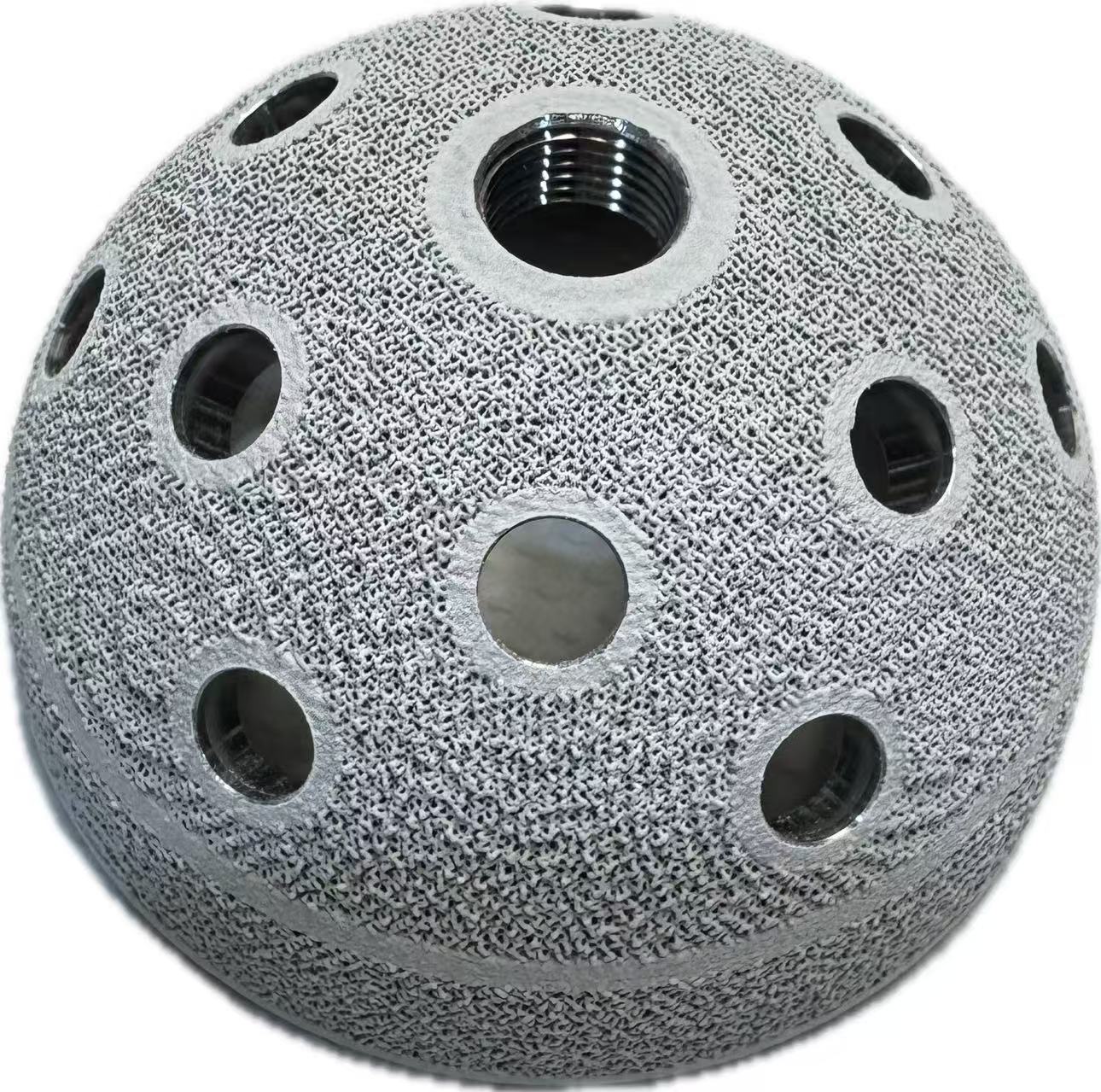

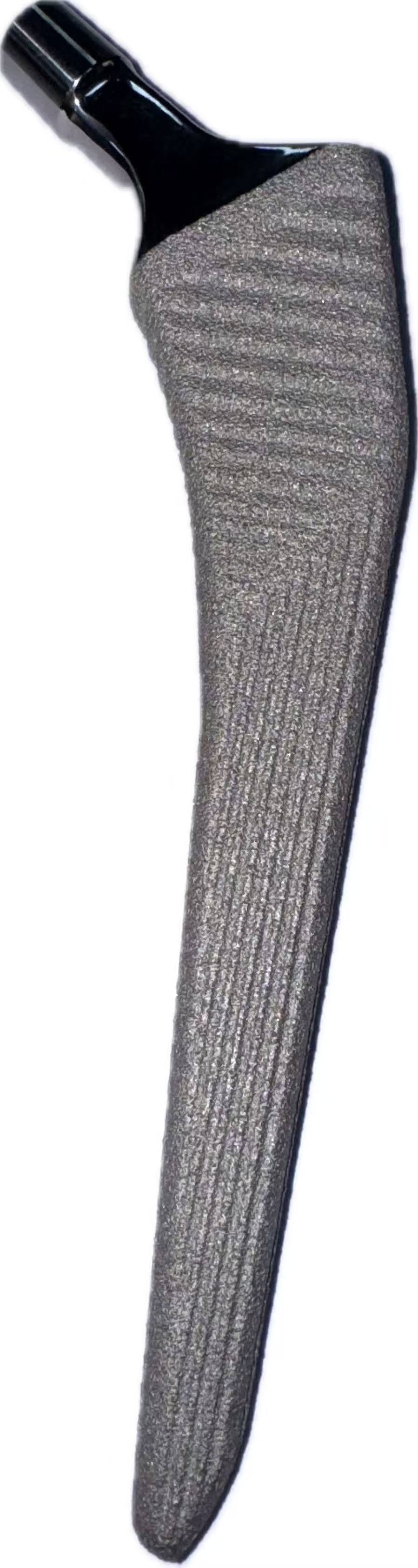

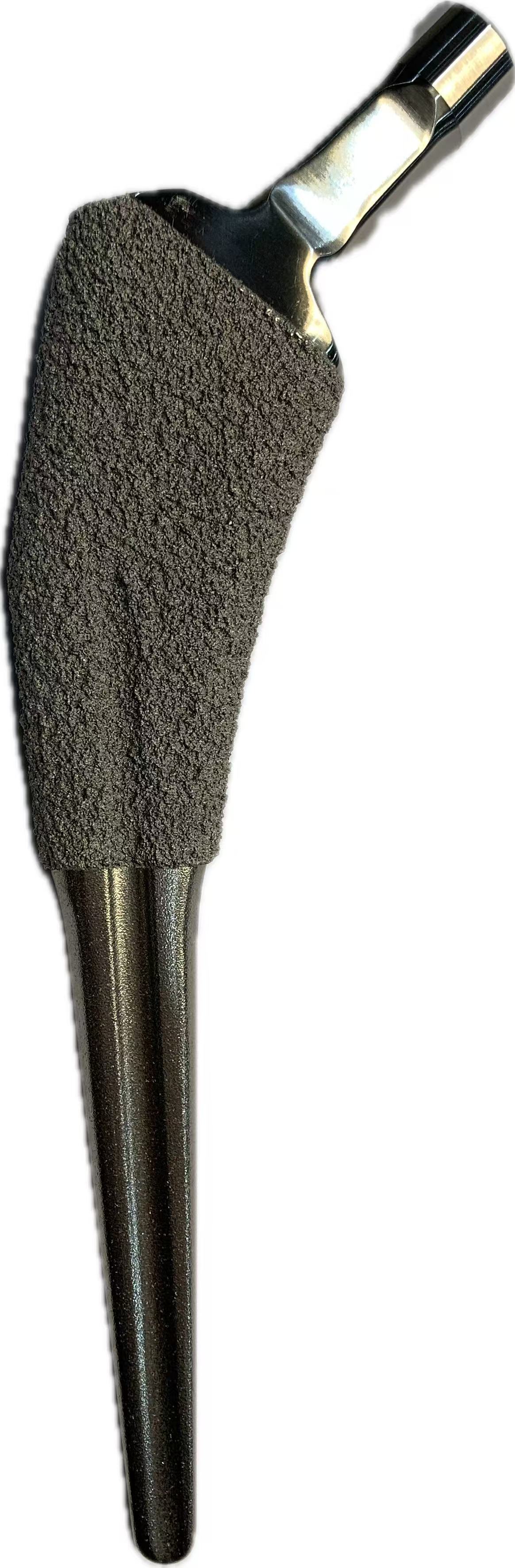

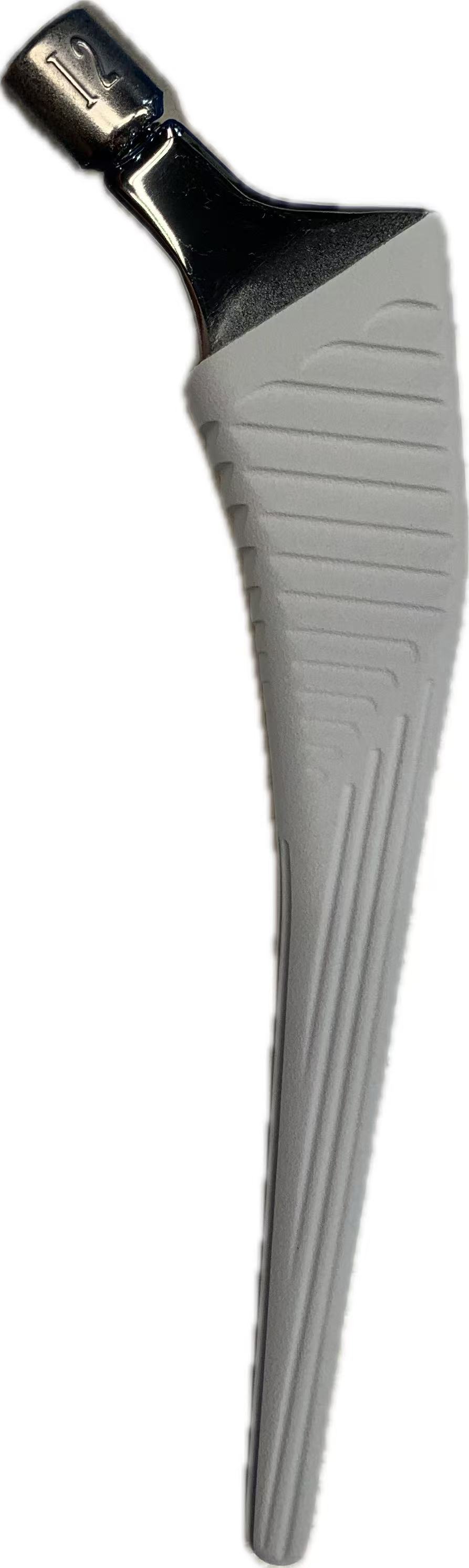

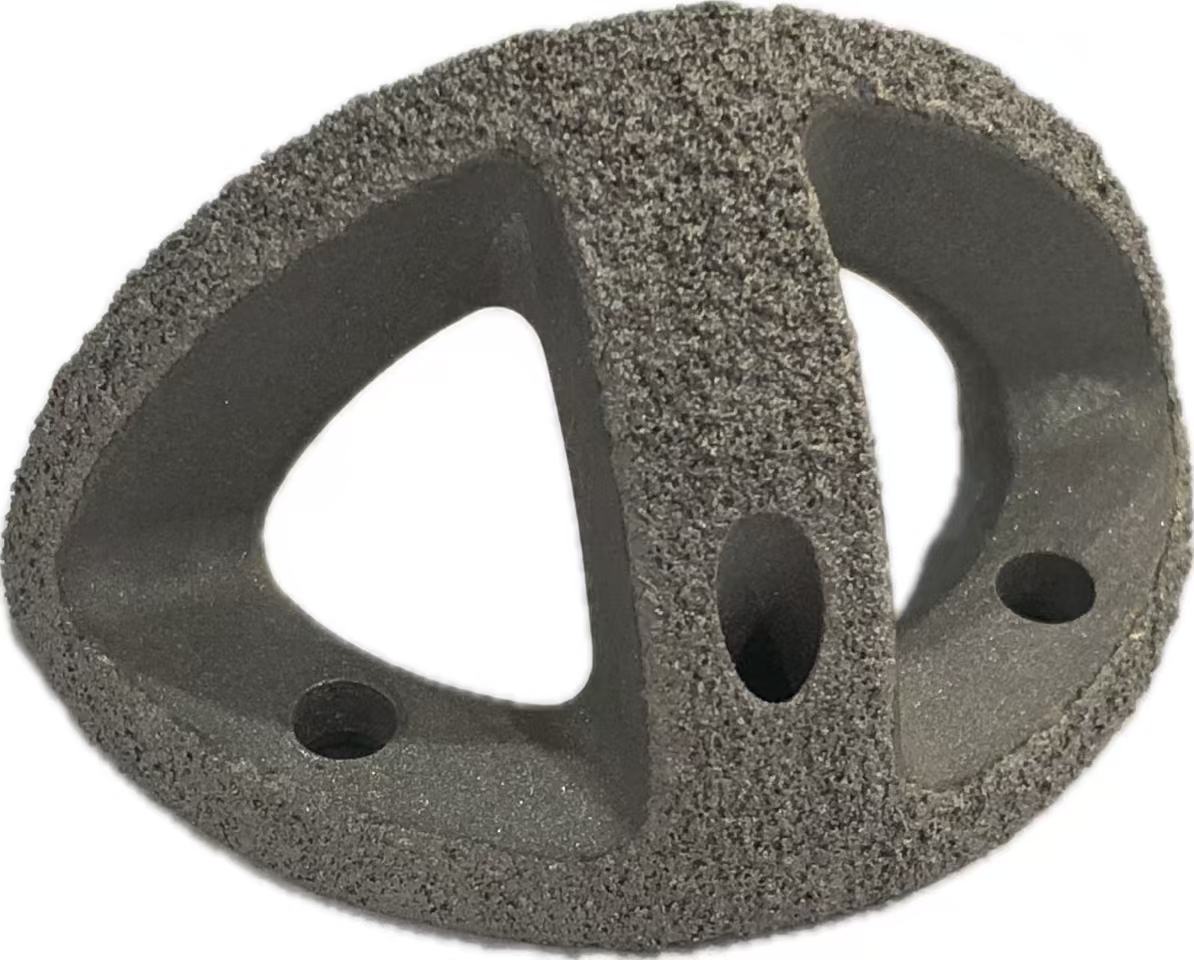

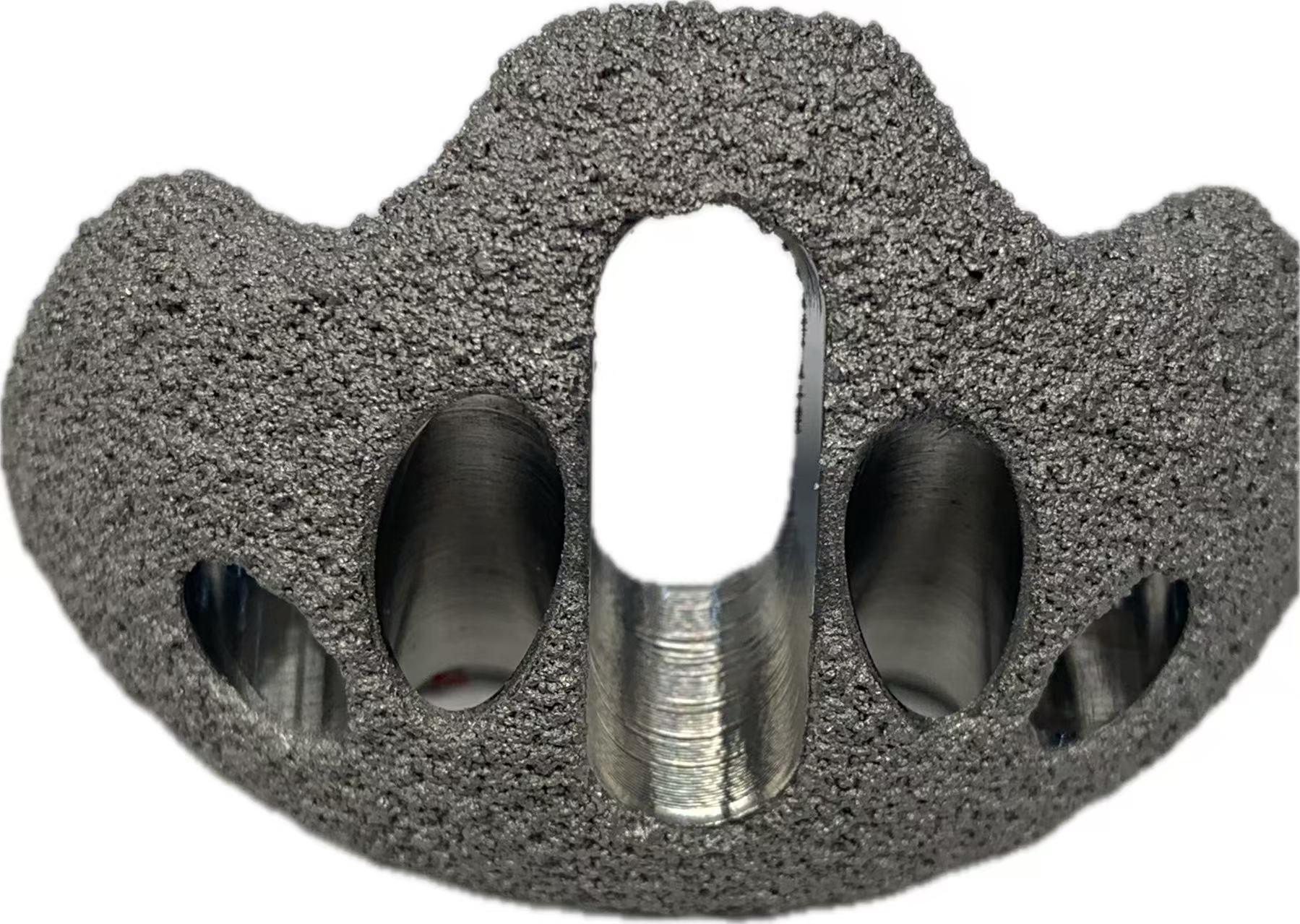

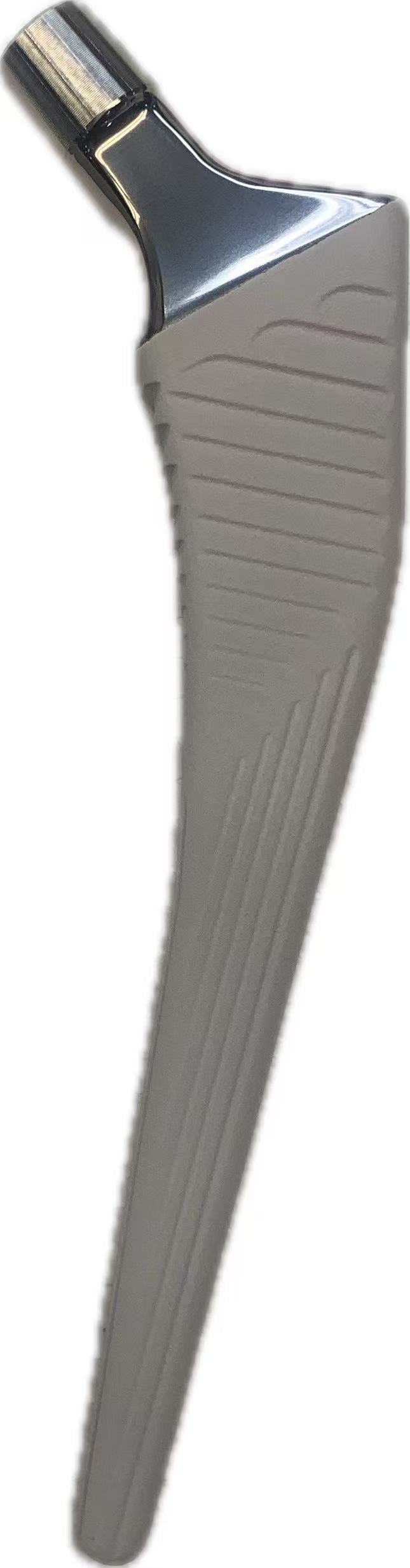

Porous titanium and HA coatings on Ti6Al4V ELI and CoCrMo cementless femoral stems, acetabular shells, and augment wedges.

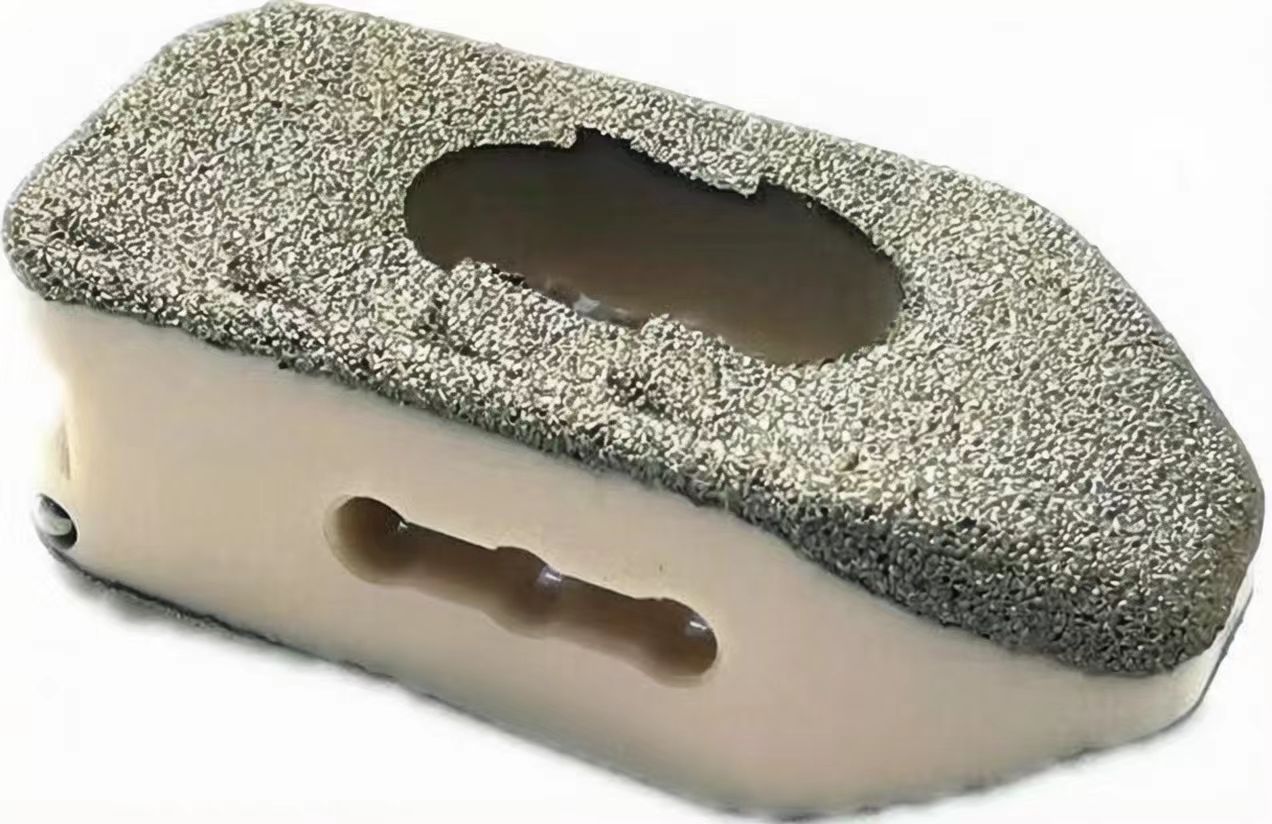

ASTM F1147 / F1854Spinal Interbody Systems

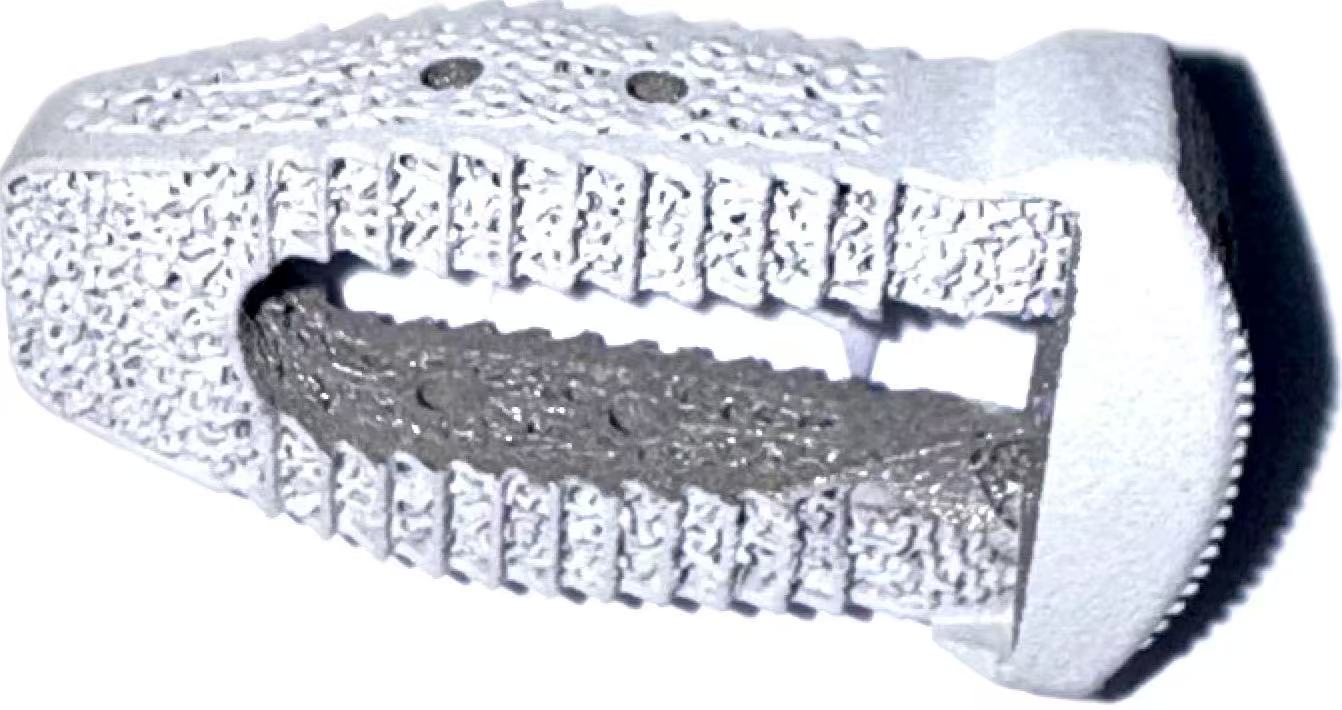

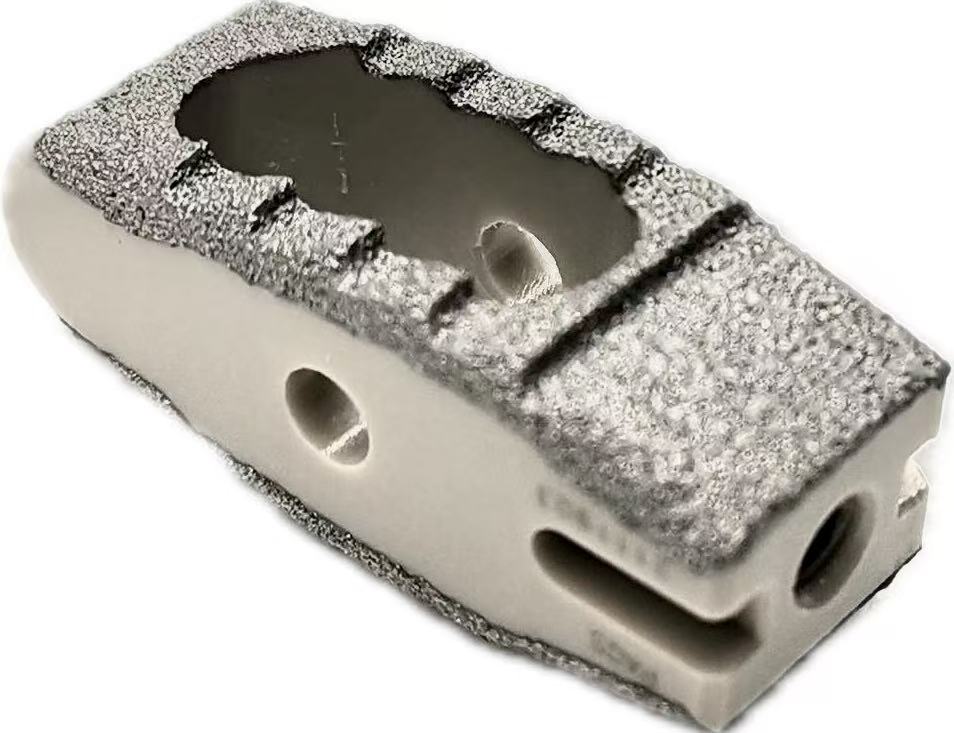

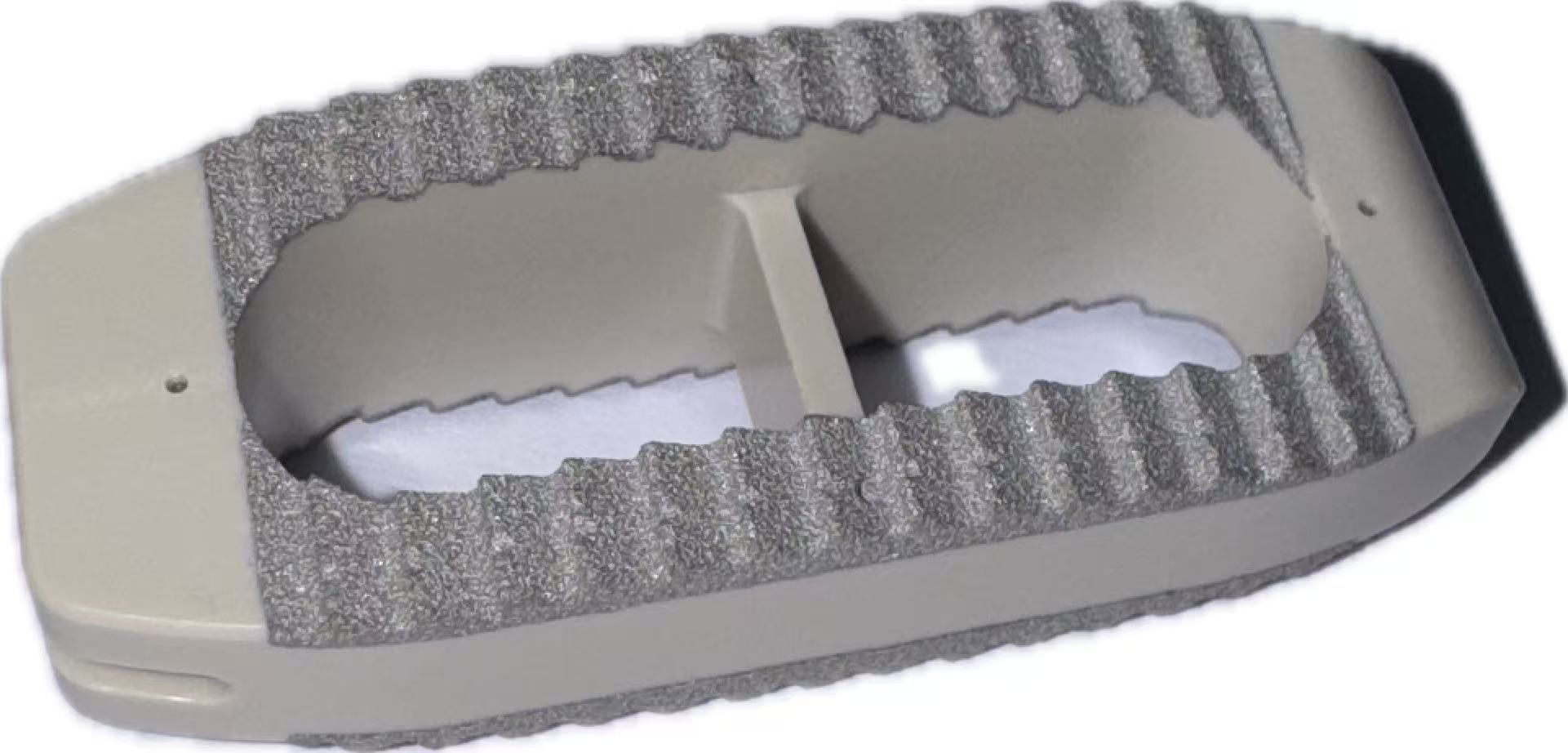

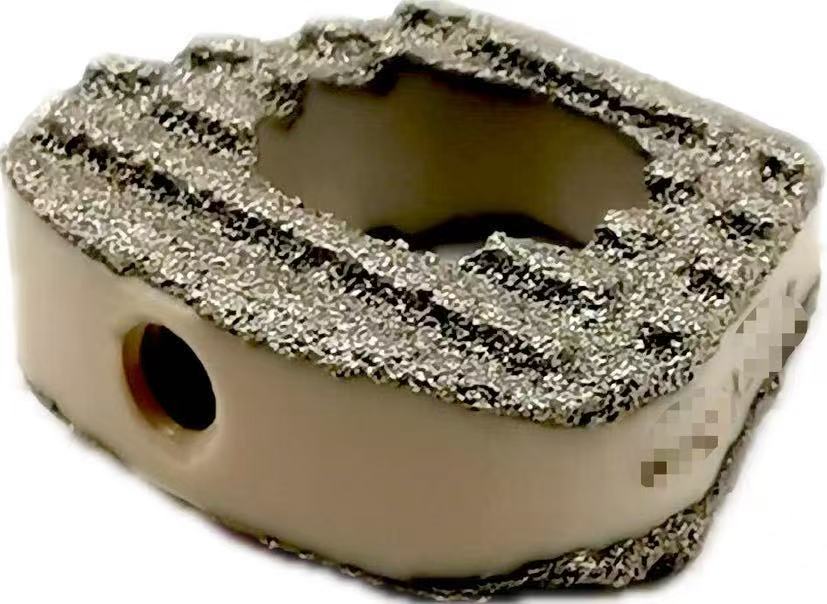

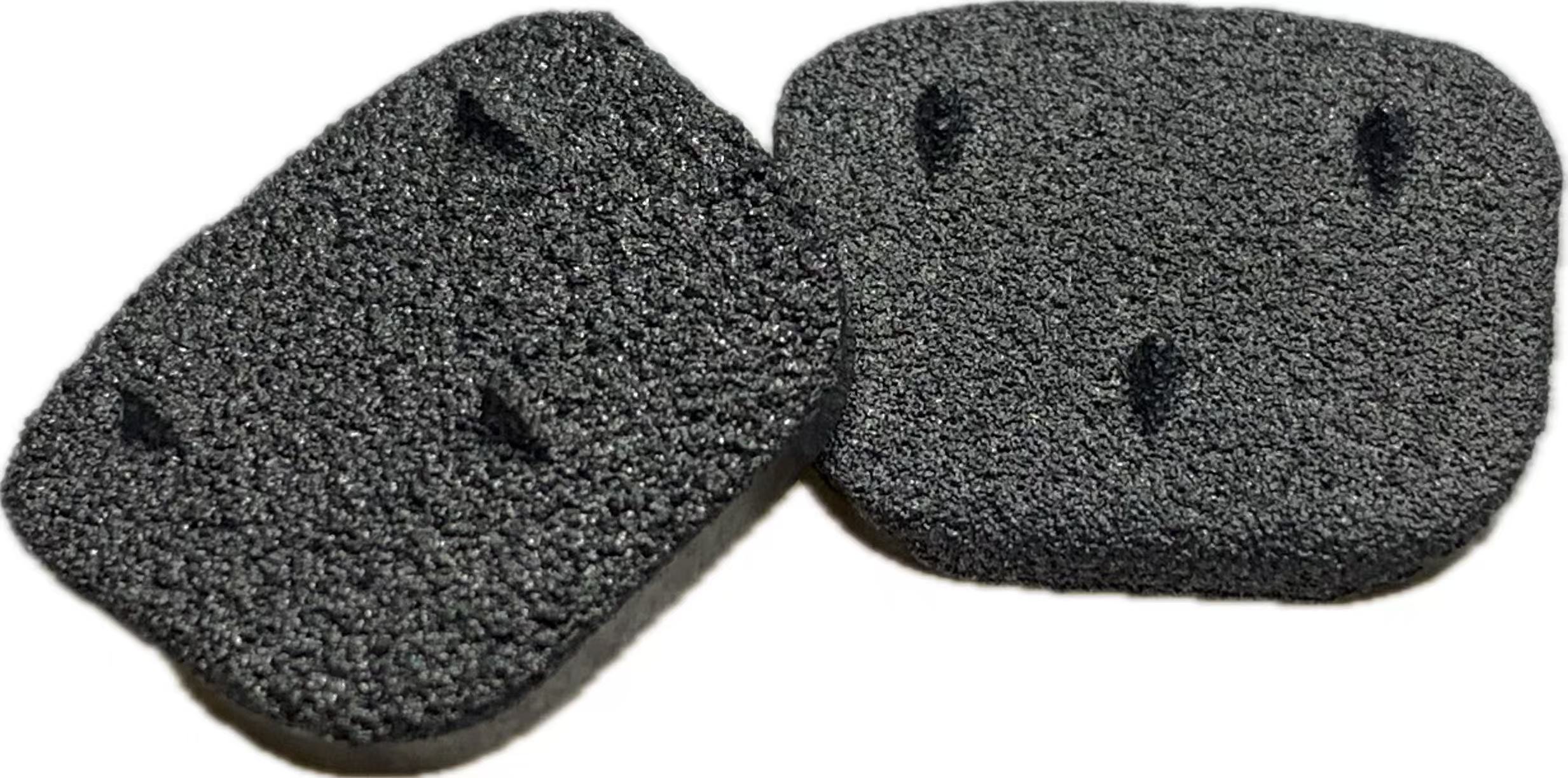

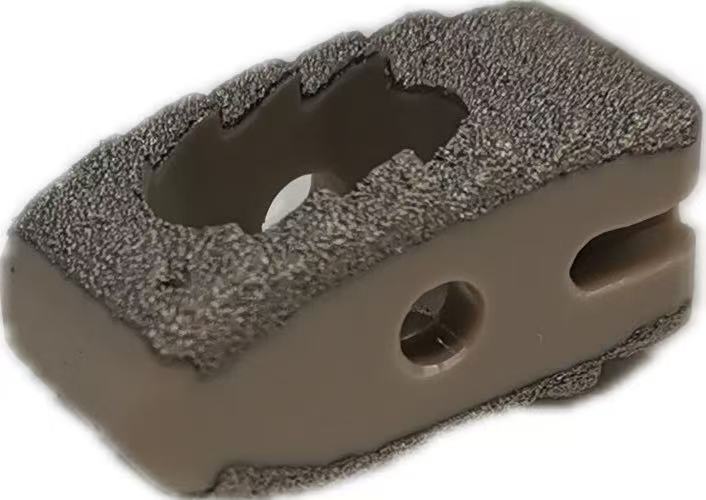

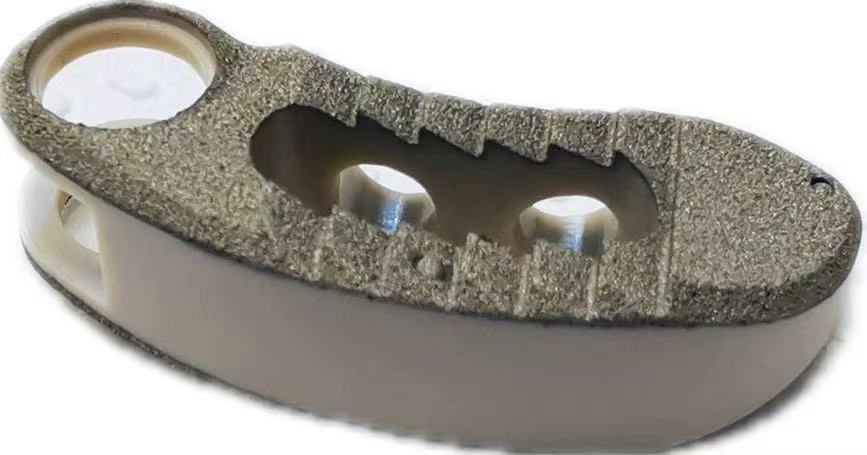

Bioactive pure Ti and HA coatings applied to Titanium and PEEK interbody fusion cages, enhancing endplate bone ongrowth.

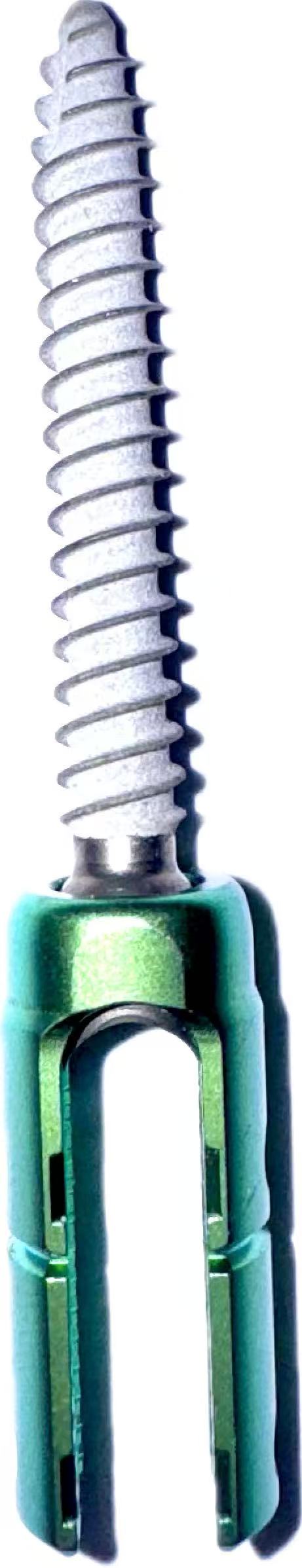

Low-Temp SprayingFixation & Screws
HA coating on cancellous bone screws, external fixator pins, and osteosynthesis plates to minimize loosening and infection risk.
ISO 13779-2Dental Implantology

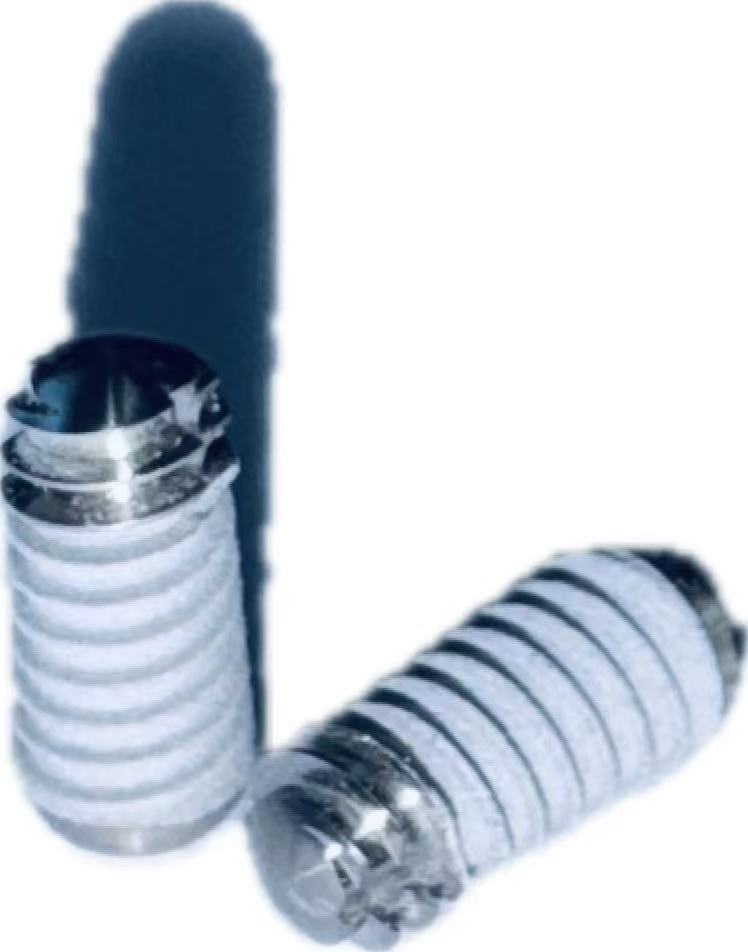

Micro-textured titanium plasma spraying and thin bio-ceramic coatings for immediate dental implant loading stability.
Controlled Micro-RoughnessSubstrates Qualified in Production:
Ti6Al4V ELI (ASTM F136), Commercial Pure Ti (ASTM F67) with controlled surface blasting.
ASTM F75 cast and wrought medical alloys with guaranteed metallurgical adhesion.
Specialized surface functionalization preserving base polymer mechanical endurance.
Request Technical Evaluation & Quote
Submit your part specifications, substrate material, coating requirements, or target ASTM/YY standards. Our engineering team responds within 24 hours.
